Product Description

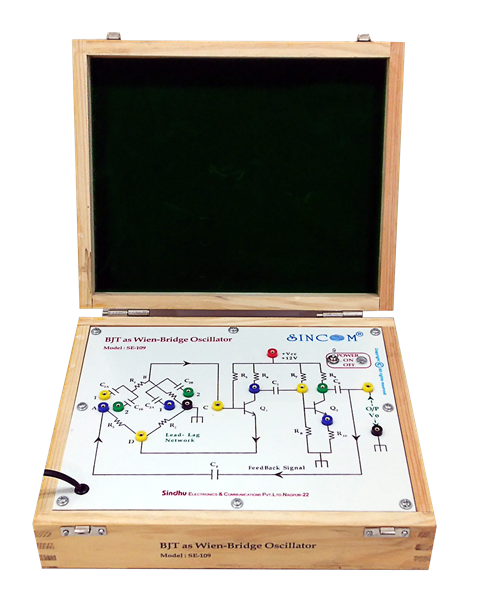

SINCOM SE-109 Wein Bridge Oscillator is a useful trainer to study the concept and operation of Wein Bridge Oscillator with RC lead-lag positive feedback to generate AF Output Frequency using BJT with facility to select multiple audio frequencies in a simple experimental way.
Product Features
- Two stage BJT Transistor based RC coupled self bias CE Amplifier with RC lead-lag Feedback network.
- RC Lead Lag Network as Feedback components
- Two sets of RC lead-lag Network to provide Two output frequency in AF range.
- Facility to select the two output frequencies.
- In-Built Fixed regulated DC Power Supply
- User friendly Design
- Very Easy for Operation
- Multi color Circuit Diagram is printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Oscilloscope and Digital Meters.
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study operation of Wein Bridge Oscillator Circuit.
- To Determine the Quiescent Operating Point of Transistor.
- To Observe & Note Change in Frequency of Oscillation w.r.t. change in feedback elements.
- Compare the Theoretical & Practical values.
