Product Description

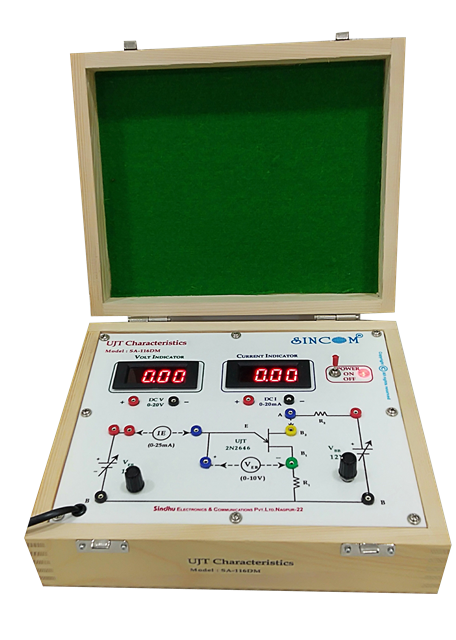

SINCOM SA-116DM Uni-Junction Transistor (UJT) Characteristics with Digital meters is comprehensive remarkable trainer is useful to study V-I characteristics of UJT. The UJT are widely used in Pulse, Switching, Timing, Sensing, Thyristor Phase control and voltage detector circuit. The trainer is simply designed to plot its characteristics and determine the various operational parameters in a simple experimental way. The trainer is equipped with on board Digital voltmeter and Digital Ammeter.
Product Features
- Silicon PN Uni-junction TO-18 Metal Transistor type UJT is provided
- Individual control of Emitter and Base-2 Input DC voltages
- Current controlling resistors in Emitter, Base-1 and Base-2
- In-Built Variable regulated DC Power Supply
- Multi color Circuit Diagram printed on the front of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- On Board 31/2 Digit Digital Voltmeter and Ammeter
- User friendly Designed
- Very Easy for Operation
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To study the operation of UJT.
- To Study the V-I characteristics of UJT for the Different Values of applied VBB Voltage.
- To Determine Peak-Point (Vp) & Vallay-Point (Vv) Voltage of UJT.
