Product Description

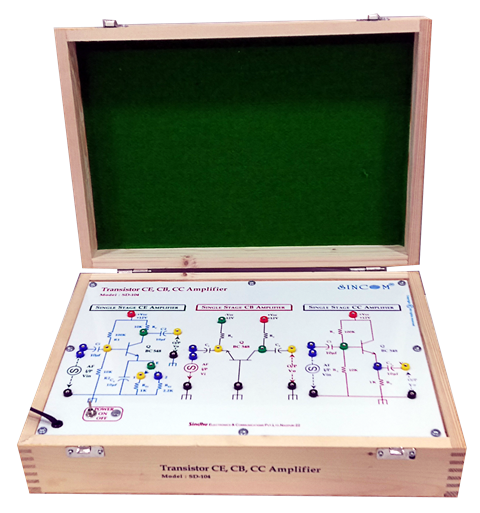

SINCOM SD-104 Transistor Amplifier (Single Stage CE,CB,CC) is All-In-One simply designed trainer for the purpose to study the concept, operation, Frequency response and determine the Bandwidth, Voltage gain and other parameters of BJT as Single Stage CE,CB,CC Amplifier with a gain control in a simple experimental way.
Product Features
- User friendly Design
- Separate Modules of Single Stage CE,CB and CC Amplifier
- BJT NPN BC548 with Self, Fixed base biasing operates as a Single stage CE,CB,CC amplifier circuit
- Silicon NPN BJT of TO-92 package on board
- For CE Amplifier- Resistor Bank at Emitter to control the gain and Resistive Collector Load
- For CB Amplifier- Resistive Collector Load
- For CC Amplifier- Resistive Emitter Load
- In-Built Fixed Dual regulated DC Power Supply
- Very Easy for Operation
- Multi color Circuit Diagram is printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Function Generator and Oscilloscope
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To study Single Stage CE Amplifier & Observe change in O/P w.r.t. change in I/P Frequency.
- To study the Single Stage CB Amplifier and Observe the change in O/P w.r.t. change in I/P Frequency.
- To study the Single Stage CC Amplifier and Observe the change in O/P w.r.t. change in I/P Frequency.
- To Plot the frequency response & To Determine Bandwidth of CE/CB/CC amplifier circuit.
