Product Description

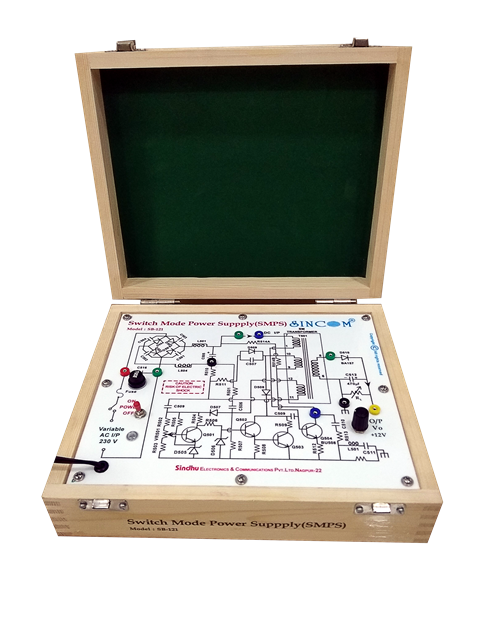

SINCOM SB-121 Switching Mode Power Supply (SMPS) Trainer is a remarkable very useful simply designed trainer to study the concept, operation, line and load regulation characteristics of a Switching Mode Power supply (SMPS) in a simple experimental way. The Trainer is without meters and has the facility to connect the external analog or digital Voltmeter and Ammeter in the circuit.
Product Features
- User friendly Design
- +12V SMPS Regulated DC Output voltage
- Wide AC Input Voltage range
- PWM based HF Power Switching circuit
- SMPS based on SMT Transformer, Full Wave bridge Rectifier, Power Transistor Control Switching, High Frequency rectifier and Capacitor Filter circuit
- Variable Resistive Load
- Multi color Circuit Diagram is screen printed on the front of the white color acrylic board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Digital/Analog Voltmeter and Ammeter
- Interconnections by 2mm high quality banana sockets and pin
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study the operation of Switching Mode Power Supply (SMPS) Circuit.
- To Observe & Note the regulated DC O/P.
- To observe & Note the time period/frequency of Switching.
- To Study Change in O/P Voltage w.r.t. change in I/P Voltage with Load RL constant (Line Regulation)
- To Study Change in O/P Voltage w.r.t change in Load RL with I/P voltage constant (Load Regulation)
