Product Description

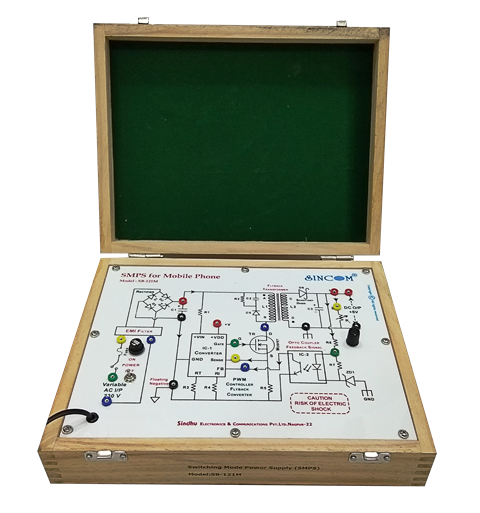

SINCOM SB-127 SMPS for Mobile Phone is a remarkable very useful simply designed trainer to study the operation, line and load regulation characteristics of a Switching Mode Power supply (SMPS) for Mobile Phone application in a simple experimental way. The Trainer is without meters and has the facility to connect the external analog or digital Voltmeter and Ammeter in the circuit.
Product Features
- User friendly Design
- +5V SMPS Regulated DC Output voltage
- Wide AC Input Voltage range
- IC Based PWM Controller and Fly-back converter
- Opto-coupler IC based Feedback signal converter
- EMI Filter and Flyback SMT Transformer
- MOSFET as Switching Device
- Schottky Diode as a Rectifier with Capacitor Feedback
- Variable Resistive Load
- Low Output voltage Ripples
- High operating Temperature range
- Facility to apply variable single phase AC Input voltage from Dimmerstat
- Very Easy for Operation
- Multi color Circuit Diagram is screen printed on the front of the white color acrylic board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Digital/Analog Voltmeter and Ammeter
- Interconnections by 2mm high quality banana sockets and pins
- aximum Test points to explore all the corners of experiment
Learning Scope
- To Study the operation of Switching Mode Power Supply (SMPS) for Mobile Phone Circuit.
- To Observe & Note the regulated DC O/P.
- To observe & Note the time period/frequency of Switching.
- To Study Change in O/P Voltage w.r.t. change in I/P Voltage with Load RL constant (Line Regulation)
- To Study Change in O/P Voltage w.r.t change in Load RL with I/P voltage constant (Load Regulation)
