Product Description

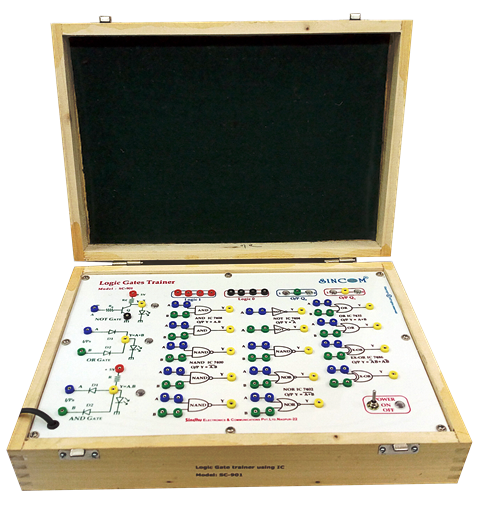

SINCOM SC-901 Logic Gates Trainer is a self contained trainer to verify the operation and truth table of AND,NAND,OR,NOR,NOT,EX-OR,EX-NOR logic gates using ICs and the basic logic gates AND,OR,NOT using Diode Transistors. This is an essential trainer for understanding and experimenting with logic gates in a simple way.
Product Features
- Logic Gates using Diode, Transistor and ICs
- Multiple Logic Gates on board
- Includes 04 TTL Logic Inputs generator
- 02 Bicolor LEDs for TTL logic Output Indicator
- Incorporate DC Power supply
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins
Learning Scope
- To Study the operation of Logic gates trainers for various inputs and outputs.
- To Study basic logic gates AND, OR, NOT using diode and transistor. Verify its truth table.
- To Study the truth table of AND,OR,NOT logic gates using TTL Digital ICs.
- To Study the truth table of NAND,NOR,XOR,XNOR logic gates using TTL Digital ICs.
- To study the various circuits using logic gates.
