Product Description

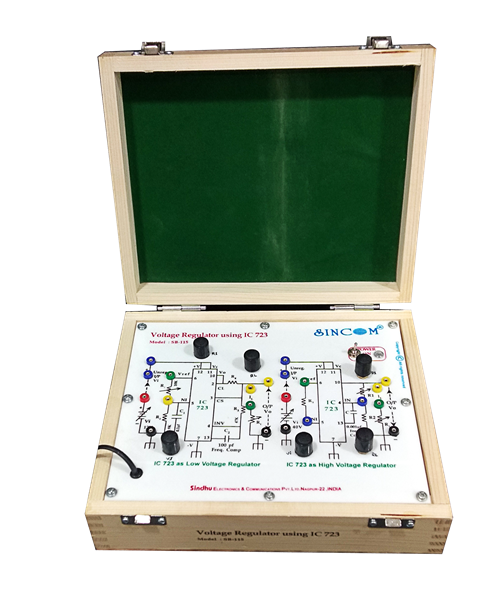

SINCOM SB-115 IC723 as Positive Low and High Voltage Regulator is a Two-In-One simply designed trainer very useful to study the operation, line and load regulation characteristics of IC723 as Positive Low and High Voltage Regulator with variable load in a simple experimental way. The trainer is without meters and has the facility to connect the external analog or digital Voltmeter and Ammeter in the circuit.
Product Features
- User friendly Design
- Two separate modules of IC723 as a Positive Low and High Voltage Regulator circuits
- IC723 wired with Resistive and Capacitive network as a linear Positive Low and High Voltage Regulator
- Adjustable Low Regulated DC Output voltage between 2V to 7V
- Adjustable High Regulated DC Output voltage between 7V to 27V
- Output Voltage Control by two separate Potentiometers
- High operating Temperature range
- Variable Resistive Load
- Facility to vary wide range of applied DC Input voltage
- Facility to vary regulated Output DC Voltage
- In-Built Variable regulated DC Power Supply
- Very Easy for Operation
- Multi color Circuit Diagram is screen printed on the front of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Digital/Analog Voltmeter and Ammeter
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study IC 723 as (adjustable) Positive Low voltage regulator. Compare theoretical & Practical values.
- To Study IC 723 as (adjustable) Positive High voltage regulator. Compare theoretical & Practical values.
- To Study Change in O/P Voltage w.r.t. change in I/P Voltage with Load RL constant (Line Regulation)
- To Study Change in O/P Voltage w.r.t change in Load RL with I/P voltage constant (Load Regulation)
