Product Description

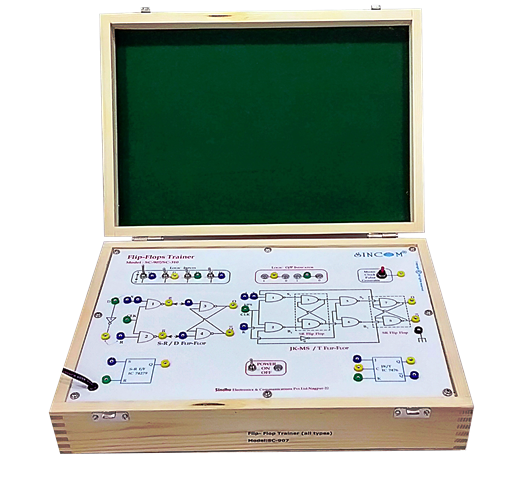

SINCOM SC-907/SC-310 Flip-Flop Trainer is a self-contained trainer to verify the operation & truth table of RS, JK, JKMS, D & T Flip-Flops using logic gates and ICs, with the facility to apply logic Inputs, logic output Indicator, Mono clock Pulse generator and DC Power Supply.
Product Features
- Covers all the Flip-Flops
- Separate modules for all Flip-Flops
- 04 TTL Logic Inputs generator
- 02 LEDs for TTL logic Output Indicator
- Incorporate DC Power supply
- Mono Clock Pulse generator
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins.
- User friendly Designed
Learning Scope
- To Study Flip-flop trainer.
- To Study and verify the truth table of R-S & Clocked R-S Flip-Flop.
- To Study and verify the truth table of JK & JK Master Slave Flip Flop.
- To Study and verify the truth table of D and Clocked D-Flip Flop.
- To Study and verify the truth table of T-Flip Flop.
