Product Description

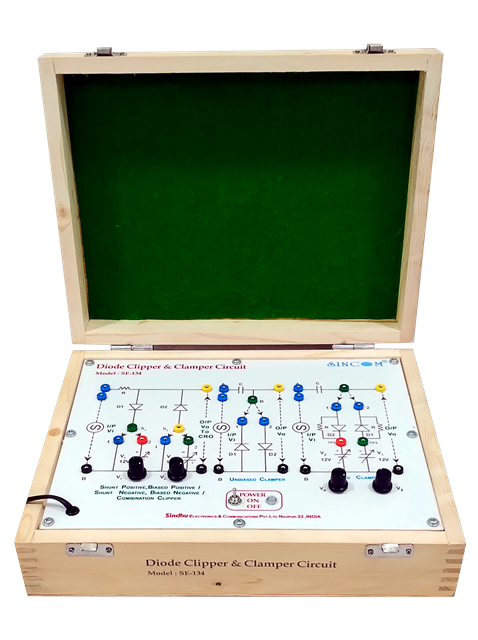

SINCOM SE-134 Diode Clippers and Clampers circuit is a remarkable All-In-One useful trainer with PN Junction Diode, resistors, capacitors and variable positive/negative bias voltage to provide Diode shunt positive, negative, combinational with & without bias clippers and Diode Positive/Negative clampers with & without bias, with facility to vary the clipping and clamping level in a simple experimental way.
Product Features
- Separate modules of Diode Clipper and Clamper
- Six Silicon Diodes DO-41 package
- Positive and Negative variable DC bias voltage
- AC Input on board
- Clipping and Clamping level control
- Facility to select different types of clippers and clampers
- Facility to connect external AC Input
- In-Built Fixed regulated DC Power Supply
- User friendly Very Easy for OperationDesign
- Multi color Circuit Diagram is printed on the front panel of the white acrylic board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect Oscilloscope and Digital Meters.
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study Shunt Unbiased Positive & Negative Diode Clipper.
- To Study Shunt Biased Positive & Negative Diode Clipper.
- To Study Shunt Combination/Compound Diode Clipper. To Observe & Note change in Clipped O/P w.r.t. applied AC I/P Signal.
- To Study Shunt Unbiased Positive & Negative Diode Clamper.
- To Study Shunt Biased Positive & Negative Diode Clamper.
- To Observe & Note change in Clamped O/P w.r.t. applied AC I/P Signal.
