Product Description

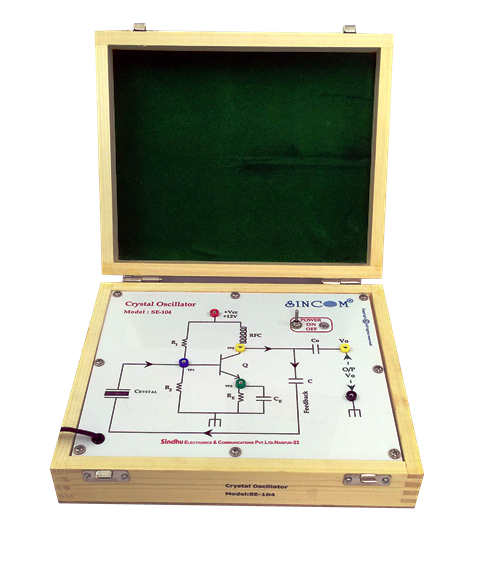

SINCOM SE-104 Crystal Oscillator is a useful trainer to study the concept and operation of Crystal Oscillator with Crystal positive feedback to generate RF Output Frequency using BJT in a simple experimental way.
Product Features
- BJT Transistor circuit of a self bias CE Amplifier mode with Crystal Feedback elements.
- Crystal of 3.2768MHZ as a feedback components
- Fixed Crystal output frequency
- In-Built Fixed regulated DC Power Supply
- User friendly Design
- Very Easy for OpeMulti color Circuit Diagram is printed on the front panel of the white boardration
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Oscilloscope and Digital Meters.
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study operation of Crystal Oscillator Circuit.
- To Determine the Quiescent Operating Point of Transistor.
- To Observe & Note Change in Frequency of Oscillation w.r.t. change in feedback elements.
- Compare the Theoretical & Practical values.
