Product Description

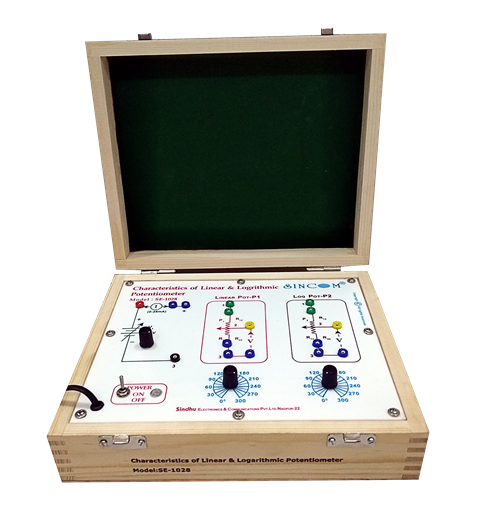

SINCOM SE-1028 Characteristics of Potentiometer & its loading effect is a versatile trainer designed for studying the characteristics & loading effect of potentiometers. It allows users to analyze the behaviour of these potentiometers when subjected to variable DC input voltage and multiple resistors. The potentiometer features an on-board 0-300O marked shaft angle dial, providing precise control and measurement for both types of potentiometers.
Product Features
- Two Linear Potentiometers
- 0-300O marked shaft angle dial
- In-Built Variable regulated DC Power Supply
- Resistors Bank
- Facility to connect the External meters.
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To study the Potentiometers.
- To study the Characteristics of Linear Potentiometers.
- To plot the graph of shaft position Vs Resistance of Linear Potentiometer.
- To study the loading effect of the potentiometers & to calculate loading error.
