Product Description

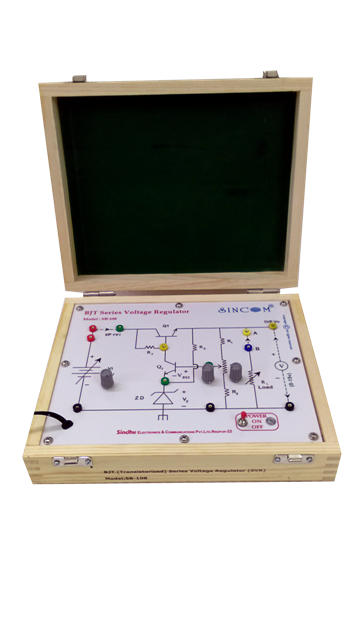

SINCOM SB-108 BJT (Transistorized) Series Voltage Regulator is very useful simply designed trainer to study the operation, line and load regulation characteristics of BJT Series Voltage Regulator with variable load in a simple experimental way. The trainer is without meters and has the facility to connect the external analog or digital Voltmeter and Ammeter in the circuit.
Product Features
- User friendly Design
- Silicon NPN Transistorized circuit with one Zener Diode as controlling element
- Facility to vary wide range of applied DC Input voltage
- Variable Resistive Load
- Facility to vary regulated Output DC Voltage
- In-Built Variable regulated DC Power Supply
- Very Easy for Operation
- Multi color Circuit Diagram printed on the front panel of the white board.
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Digital/Analog Voltmeter and Ammeter
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study operation of Series Voltage Regulator using Transistor.
- To Study Change in O/P Voltage w.r.t. change in I/P Voltage with Load RL constant (Line Regulation)
- To Study Change in O/P Voltage w.r.t change in Load RL with I/P voltage constant (Load Regulation)
