Product Description

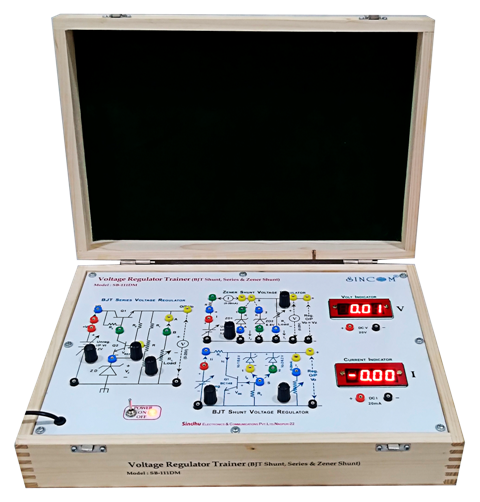

SINCOM SB-111DM Voltage Regulator with Digital meters is All-In-One remarkable self contained simply designed trainer useful to study the operation, line and load regulation characteristics of BJT Shunt, BJT Series and Zener Shunt Voltage Regulator with variable load in a simple experimental way. This has separate modules of BJT Shunt, BJT Series and Zener Shunt voltage regulator circuits. The trainer is equipped with on board Digital voltmeter & Digital Ammete
Product Features
- User friendly Design
- Three Separate modules of BJT Shunt, BJT Series and Zener Shunt Voltage Regulator circuits
- For BJT Shunt-One Silicon NPN Transistors and Two Zener diode are provided as a controlling elements
- For BJT Series-Two Silicon NPN Transistors and One Zener diode are provided as a controlling elements
- For Zener Shunt- Two Zener diodes of different voltage ratings are provided
- Variable Regulated DC Output voltage
- Low forward voltage drop
- High operating Temperature range
- Variable Resistive Load
- Facility to vary wide range of applied DC Input voltage
- Facility to vary regulated Output DC Voltage
- In-Built Variable regulated DC Power Supply
- Very Easy for Operation
- Multi color Circuit Diagram printed on the front panel of the white board.
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- On Board 31/2 Digit Digital Voltmeter and Ammeter
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study operation of Shunt Voltage Regulator using Transistor.
- To Study operation of Series Voltage Regulator using Transistor.
- To Study operation of Zener Diode as a Shunt Voltage Regulator.
- To Study Change in O/P Voltage w.r.t. change in I/P Voltage with Load RL constant (Line Regulation)
- To Study Change in O/P Voltage w.r.t change in Load RL with I/P voltage constant (Load Regulation)
