Product Description

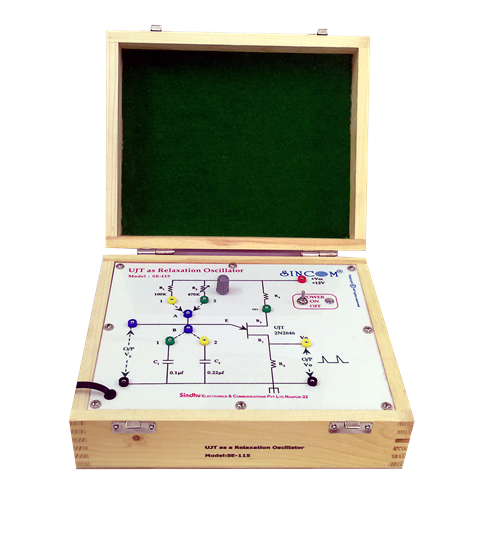

SINCOM SE-115 UJT as a Relaxation Oscillator is a useful trainer to study the concept and operation of UJT as a Relaxation Oscillator with different resistors and capacitor bank to produce multiple frequency outputs in a simple experimental way.
Product Features
- UJT of TO-18 metal package transistor
- UJT circuit of a RC component bank at emitter
- Current controlling resistors in Base-1 and Base-2
- Wide range of relaxation oscillator frequencies
- RC Bank to provide different output frequency signals
- Facility to note different signals at Emitter and Base 2.
- In-Built Fixed regulated DC Power Supply
- User friendly Design
- Very Easy for Operation
- Multi color Circuit Diagram is printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Oscilloscope and Digital Meters.
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study operation of UJT as Relaxation oscillator Circuit.
- To Study waveforms at Capacitor, Base1 & Base2.
- To Observe & Note Change in Frequency/Time Period of Oscillation w.r.t. change in R & C connected at Emitter of UJT.
- Compare the Theoretical & Practical values.
