Product Description

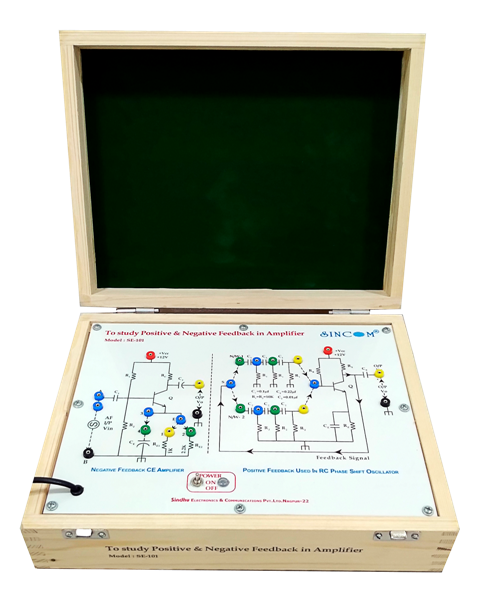

SINCOM SE-101 To study Positive & Negative Feedback Amplifier is simply designed trainer for the purpose to study the concept, operation, Frequency response, Bandwidth and voltage gain of a Positive Feedback in RC Oscillator and Negative Feedback in CE Amplifier using BJT.
Product Features
- User friendly Design
- Positive Feedback amplifier using NPN Transistor BC548 with RC Feedback banks operates as RC Phase Shift Oscillator.
- Negative Feedback amplifier using NPN Transistor BC548 in self bias CE mode with emitter feedback resistors operates as CE amplifier.
- Resistor Bank
- In-Built Fixed regulated DC Power Supply
- Very Easy for Operation
- Multi color Circuit Diagram is printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Function Generator and Oscilloscope
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To study the Positive and Negative feedback concept.
- To study Single stage CE Amplifier as a negative feedback. To Plot the frequency response.
- To study RC Phase shift oscillator as a positive feedback. To Observe & Note frequency of oscillation.
