Product Description

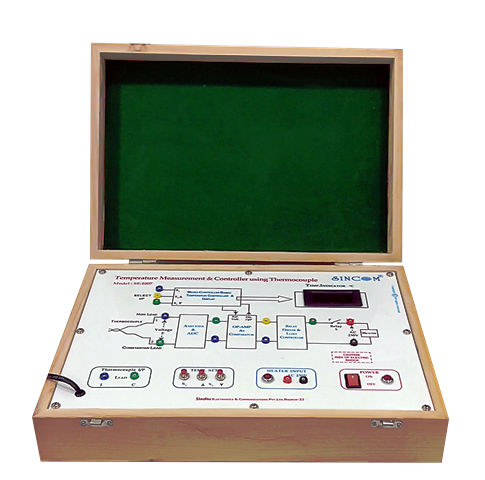

SINCOM SE-1043 Temperature ON/OFF Controller using Thermocouple is an exceptional user-friendly trainer designed for studying temperature measurement and ON/OFF control of heating loads. It utilizes Thermocouple technology to ensure precise temperature readings and control. With its microcontroller-based system, this comprehensive trainer offers accurate temperature measurement and control capabilities. The LED seven segment display provides clear temperature readings, while users can fluently set the temperature cut-off and control the electrical heater load.
Product Features
- Accurate Temperature measurement and ON/OFF control action
- CRAL Thermocouple as a Temperature Sensor
- Microcontroller based system
- Wide Temperature Range
- 31/2 Digit LED Temperature Display
- Easy setting of Temperature Cut-Off by Push Switches.
- Heater Load control
- In-Built Fixed regulated DC Power Supply
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To study Temperature measurement using Thermocouple.
- To observe and note the variation in temperature displayed w.r.t. change in Temperature.
- To Study ON/OFF Temperature Controller action.
- To observe & Note temperature shown by the temperature sensor and it’s ON & OFF controlling of Heater Load w.r.t. Pre-decided Temperature.
