Product Description

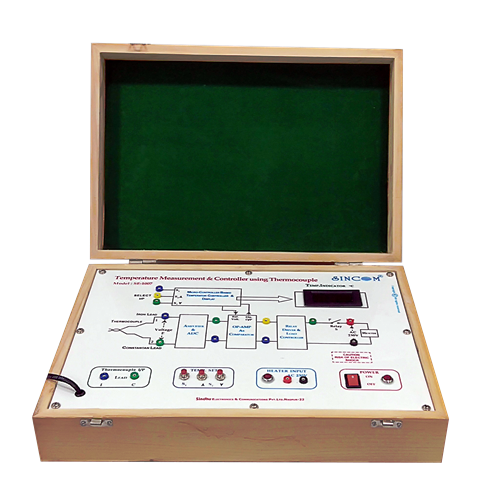

SINCOM SE-1007 Temperature Measurement using Thermocouple is an exceptional trainer for studying temperature measurement and control using Thermocouple temperature sensors. This comprehensive trainer features an instrumentation amplifier wired with a microcontroller-based system, allowing for accurate temperature measurement and control. The LED seven segment display provides clear temperature readings, and users can easily set the temperature cut-off. Additionally, the trainer includes an electrical heating system for practical application and experimentation.
Product Features
- Accurate Temperature measurement
- Thermocouple as a Temperature Sensor
- Microcontroller based system
- Wide Temperature Range measurement
- 31/2 Digit LED Temperature Display
- Heater Load control
- Temperature Cut-off setting
- External Electrical Heating System
- In-Built Fixed regulated DC Power Supply
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To study Temperature measurement using Thermocouple.
- To observe and note the variation in temperature displayed w.r.t. change in Temperature.
- To Study ON/OFF Temperature Controller action using Thermocouple. To observe & Note temperature shown by the Thermocouple sensor and it’s ON & OFF controlling of Load w.r.t. Pre decided Temperature.
