Product Description

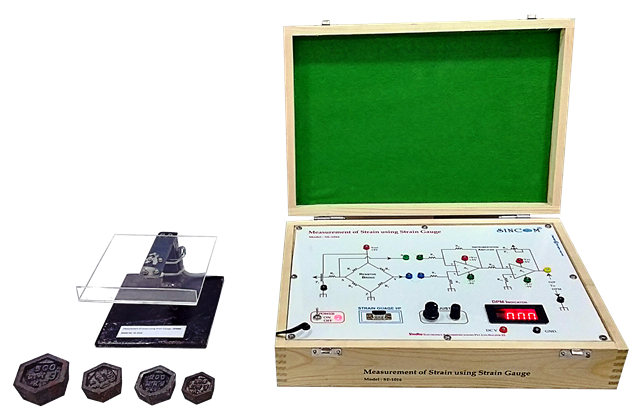

SINCOM SE-1016 Measurement of Strain Trainer is a versatile and comprehensive trainer specifically designed for measuring strain using a strain gauge. With its advanced setup, this trainer offers an output voltage that accurately reflects the applied strain on the bridge network. It features a Digital LED Display for easy strain visualization, a mechanical strain arrangement with various weights for practical experimentation, and the added convenience of gain and calibration control. This trainer is an essential tool for anyone involved in strain measurement and calibration.
Product Features
- Two Strain Gauge transducer
- Easy Gain and Calibration Control
- Digital LED Display
- Mechanical Strain arrangement
- Wide Strain measurement Range
- In-Built Fixed regulated DC Power Supply
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To study the operation of a strain gauge amplifier and strain gauge transducer.
- To Observe and note the output voltage Vo w.r.t. change in load on strain gauge.
- To control gain and calibrate the output voltage for the applied strain input.
