Product Description

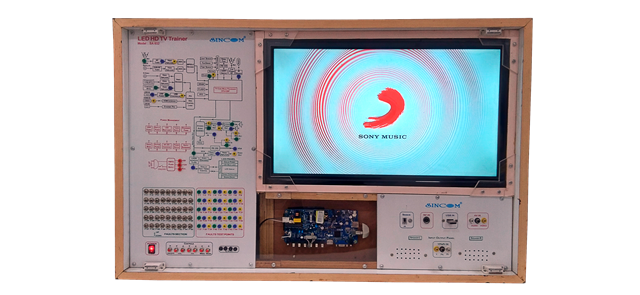

SINCOM LED HD TV Trainer (Digital TV) is designed for the purpose of exhibiting the functionality, signal analysis, voltage analysis, and troubleshooting methods of an LED HD TV Receiver (Digital TV) equipped with an LED display panel and a remote control. This trainer provides a comprehensive learning experience, offering clarity and simplicity in conducting experiments on LED HD TVs. Moreover, it enables users to control all functions through the use of a remote control, and allows for the study of signal and voltage analysis in each individual section. Additionally, it offers the capability to create 40 different faults across all sections.
Product Features
- Designed with careful consideration of safety precautions
- 24" LED Display Panel
- 40 Switch Faults Creating facility
- Push Buttons for AV/TV, Volume, Channel selection and Menu controls on board
- RF Tuner Input, AV IN, Component Video Input, USB Input, HDMI Input on board
- AV OUT, VGA OUT and HDMI OUT on board
- Stereo Sound Output
- Remote IR Sensor with LED indications
- Power ON/OFF Controls on board
- Facility to control all functions by Remote control and Control Panel
- Functional Block Diagram printed in multicolor on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality elegant wooden cabinet
- Facility to connect external TV pattern Generator and Oscilloscope
- Interconnections by 2mm high quality banana sockets and pins.
- Maximum Test points to thoroughly explore all facets of the experiments
Learning Scope
- To study the concept of Colour TV System.
- To study the principle of CTV Receiver.
- To study the setting up of the LED TV Receiver.
- To study the Functional Block diagram of LED HD TV Receiver.
- To study the various sections of Digital LED HD TV Receiver.
- To study Switched Mode Power Supply.
- To study the control Panel of LED TV.
- To study Remote Control section.
- To observe and note the Voltages at various sections of LED TV Receiver.
- To observe and note the signals/waveforms at various sections of LED TV Receiver.
- To study the 40 faults on all above sections of LED TV Receiver.
