Product Description
SINCOM SA-117 JFET Characteristics is useful to study Drain and Transfer characteristics of JFET. The JFET is widely used as a switching and an amplification device in many electronics circuits. The trainer is simply designed to plot its characteristics and determine the various operational parameters in a simple experimental way. The trainer is without meters and has the facility to connect the external analog or digital voltmeter and ammeter in the circuit.
Product Features
- N-Channel JFET of TO-72 Metal Transistor package is provided
- Low Power, High Frequency Device
- Individual control of Gate and Drain Input DC voltages
- Current controlling resistors in Gate and Drain
- In-Built Variable regulated DC Power Supply

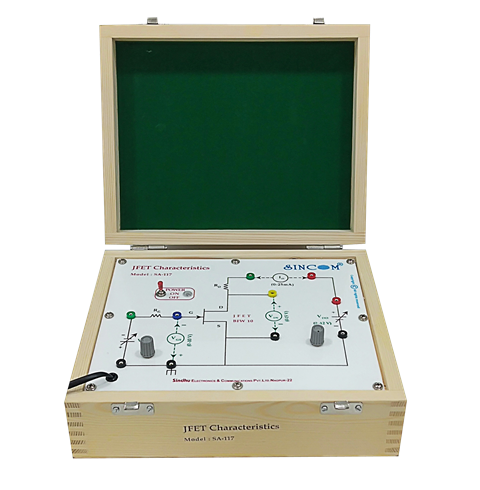

- Multi color Circuit Diagram printed on the front of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect the external Digital/ Analog Voltmeter and Ammeter
- User friendly Designed
- Very Easy for Operation
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study the Drain characteristics of JFET.
- To Study the Transfer characteristics of JFET.
- To Determine VGS Cut-off Voltage of given JFET.
