Product Description

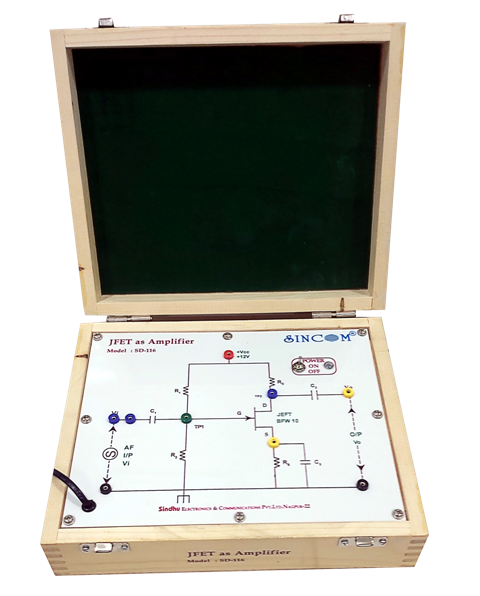

SINCOM SD-116 JFET as Amplifier is simply designed trainer for the purpose to study the concept, operation, Frequency response and determine the Bandwidth, Voltage gain and other parameters of JFET as an Amplifier in a simple experimental way.
Product Features
- User friendly Design
- N Channel JFET with voltage divider biasing in CS mode operates as a JFET amplifier circuit
- N-Channel JFET of TO-72 package on board
- Resistive Drain Load
- In-Built Fixed regulated DC Power Supply
- Very Easy for Operation
- Multi color Circuit Diagram is printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Function Generator and Oscilloscope
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study JFET as Amplifier circuit.
- To Observe & Note change in output w.r.t. change in I/P Frequency.
- To Plot frequency response & To Determine Bandwidth, Voltage Gain
