Product Description

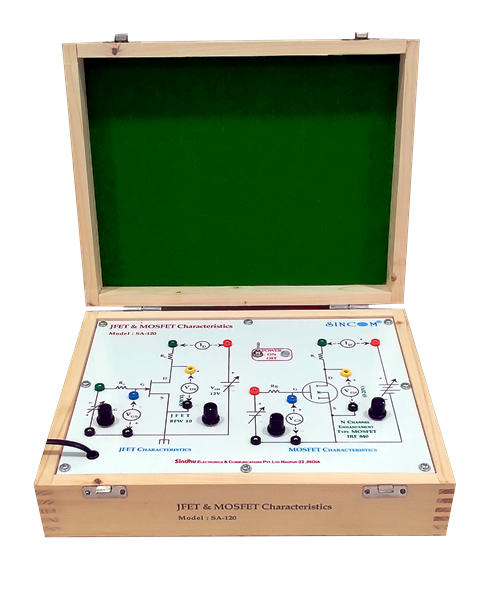

SINCOM SA-120 JFET & MOSFET Characteristics is useful to study Drain and Transfer characteristics of JFET and MOSFET. The JFET and power MOSFET are widely used for very fast switching operations as well as for amplification processes. The trainer is simply designed to plot its characteristics and determine the various operational parameters in a simple experimental way. The trainer is without meters and has the facility to connect the external analog or digital voltmeter and ammeter in the circuit.

Product Features

TO-72 JFET and TO-2220AB MOSFET Transistor package
Two separate modules of JFET and MOSFET Characteristics
N-Channel JFET and N-Channel Enhancement type power MOSFET are provided
JFET is Low Power, High Frequency Device
MOSFET is low ON-State Resistance, Fast Switching and low thermal Resistance device
Individual control of Gate and Drain Input DC voltages
Current controlling resistors in Gate and Drain
In-Built Variable regulated DC Power Supply
Multi color Circuit Diagram printed on the front of the white board
Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
Facility to connect the external Digital/ Analog Voltmeter and Ammeter
User friendly Designed
Very Easy for Operation
Interconnections by 2mm high quality banana sockets and pins
Maximum Test points to explore all the corners of experiment

Learning Scope

To Study the Drain characteristics of JFET.
To Study the Transfer characteristics of JFET.
To Determine VGS Cut-off Voltage of given JFET.
To Study the Drain characteristics of N-channel Enhancement type MOSFET
To Study the Transfer characteristics of N-channel Enhancement type MOSFET
To Determine VGS Threshold Voltage of given MOSFET.
