Product Description

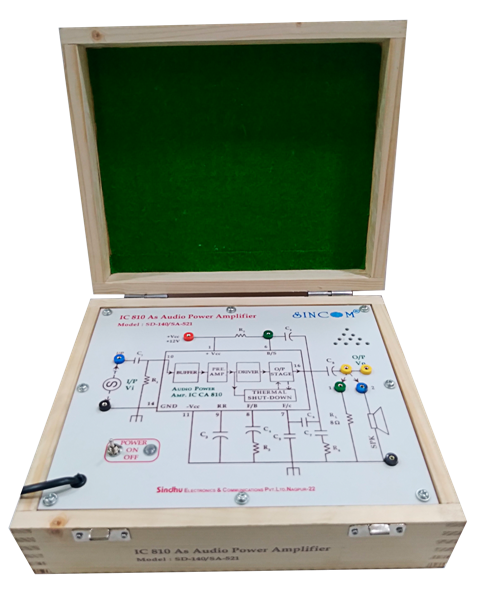

SINCOM SD-140 IC810 as Audio Amplifier is simply designed trainer for the purpose to study the concept, operation, Frequency response and determine the Bandwidth, Voltage gain and other parameters of a IC810 as Audio Amplifier in a simple experimental way.
Product Features
- IC TBA810 wired with Resistive Capacitive network to operates as a IC 810 Audio Amplifier
- IC TBA810 Monolithic Integrated circuit in a 12 lead Quad In-Line plastics package on board
- Wide Bandwidth AF Amplifier
- Higher Audio Output
- Low Noise
- Polarity Inversion Protection
- High Supply Voltage Rejection
- Fortuitous open Ground protection
- Resistive as well as Loud Speaker as Inductive Load
- Input and Output Coupling Capacitors
- In-Built Fixed regulated DC Power Supply
- User friendly Design
- Very Easy for Operation
- Multi color Circuit Diagram is printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Function Generator and Oscilloscope
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study IC 810 as Audio Power amplifier circuit.
- To Observe & Note change in Output w.r.t. change in Input Frequency
- To Plot the frequency response & To Determine Bandwidth, Voltage Gain.
