Product Description

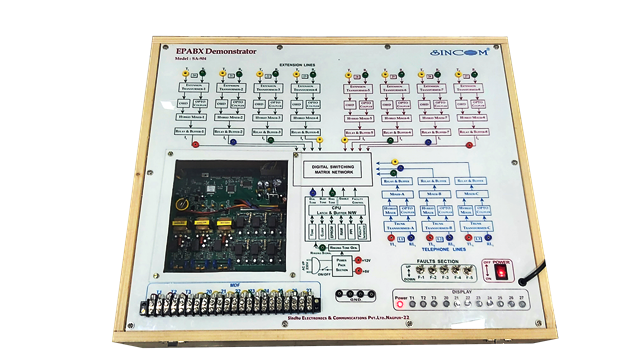

SINCOM EPABX Demonstrator is fully comprehensive trainer for the purpose of learning the functionality, installation, signal analysis, voltage analysis, programming and troubleshooting of 3x8 EPABX (Electronics Private Automatic Branch Exchange) system. It allows user for the study of signal and voltage analysis in each individual section and offers the capability to create 5 different faults across all sections and interface 3 DOT lines with 8 telephone extensions.
Product Features
- 3 x 8 EPABX System
- MDF section of 8 Extensions and 3 Telephone line interface on board
- Digital Switching Matrix Network
- 05 Switch Faults Creating facility
- DTMF/Pulse Dialing
- LED Line Status indication
- Distinctive ringing, Simultaneous Ringing
- Power ON/OFF Controls on board
- Functional Block Diagram printed in multicolor on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality elegant wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins.
- Maximum Test points to thoroughly explore all facets of the experiments
Learning Scope
- To study the basic Principle and concept of EPABX.
- To study the functional Block Diagram of EPABX.
- To study the Dial Tone, Busy Tone & Ringing Tone.
- To study the Power Supply Section of EPABX.
- To study the MDF section.
- To study the EPABX Programming.
- To study Pulse and Tone Dialling.
- To study switching mechanism between subscribers.
- To study switching mechanism between subscribers.
- To observe & note the signals at the various points of the circuit.
- To study the 05 faults on all various sections of EPABX.
