Product Description

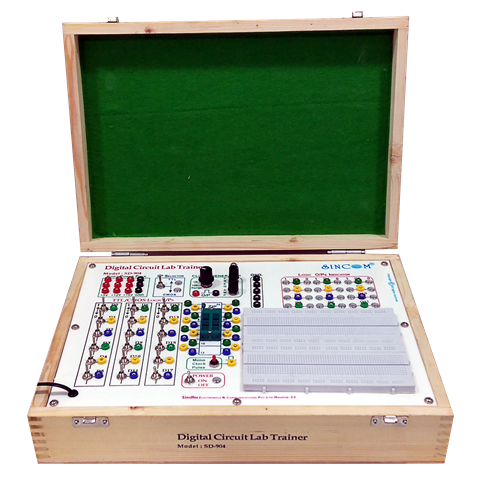

SINCOM SD-904 Digital Circuit Lab Trainer is an outstanding and comprehensive trainer that is highly suitable for the assembly and testing of Digital Electronics circuits on a Bread Board platform. This trainer offers the capability to apply a fixed DC Power supply, along with various features including a TTL/CMOS Logic Inputs generator, TTL/CMOS Logic Output Indicators, a Mono clock Pulse generator, ZIP IC socket, and a variable Clock Signal generator. This Trainer provides a formal and sophisticated solution for the construction and evaluation of a wide range of Digital Electronics circuits.
Product Features
- Suitable for wide range of TTL / CMOS Digital Electronics Circuits.
- Two Bread Boards Platform with 1680 tie points
- One 24 pin ZIP IC Socket Platform
- Incorporates DC Power supply for TTL/CMOS
- Facility to select the TTL/CMOS Digital circuits
- Includes 18 TTL/CMOS Logic Inputs Generator switches
- Provides 12 Bicolor LEDs for TTL/CMOS logic Output Indicator
- Mono Clock Pulse Generator
- Variable Clock Signal Generator
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Function Generator and Oscilloscope
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To Study the Digital Circuit Lab Trainer for various inputs and outputs.
- To analyze the TTL/CMOS Power supply section.
- To Study the Clock Pulse generator section.
- To investigate the Logic Generator, Indicators and Mono clock pulse generator.
- To proficiently construct the desired Digital circuit on the bread board.
- To thoroughly test the assembled circuit.
