Product Description

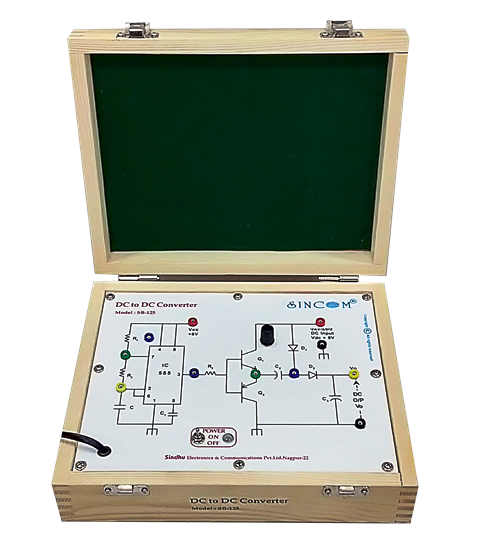

SINCOM SB-125 DC-DC Converter is very useful simply designed trainer to study the operation of a DC low voltage to DC High Voltage Converter circuit in a simple experimental way. The Trainer is without meters and has the facility to connect the external analog or digital Voltmeter and Ammeter in the circuit.
Product Features
- User friendly Design
- IC555 as a adjustable high switching frequency generator
- NPN, PNP, Diode and Capacitor based DC-DC Converter circuit
- Adjustable Switching Frequency
- Fixed Low DC Input Voltage
- Variable Output DC Voltage
- In-Built Regulated DC Power Supply
- Very Easy for Operation
- Multi color Circuit Diagram is screen printed on the front of the white color acrylic board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Digital/Analog Voltmeter and Ammeter
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study the Operation of DC to DC Converter Circuit.
- To Observe & Note the DC O/P Voltage w.r.t. applied DC I/P Voltage.
