Product Description

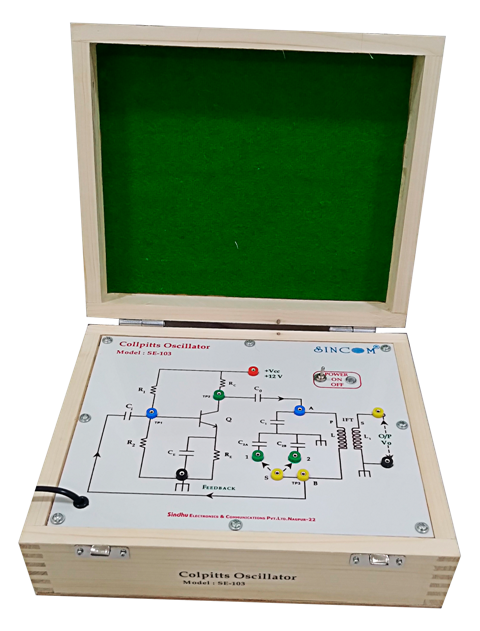

SINCOM SE-103 Colpitts Oscillator is a useful trainer to study the concept and operation of Colpitts Oscillator with LC positive feedback to generate RF Output Frequency using BJT with facility to select multiple radio frequencies in a simple experimental way.
Product Features
- BJT Transistor circuit of a self bias CE Amplifier mode with LC Feedback elements.
- Two Inductors and one Capacitor Feedback components
- Capacitor Bank to provide Two output frequency in RF range.
- Facility to select the two output frequencies.
- In-Built Fixed regulated DC Power Supply
- User friendly Design
- Very Easy for Operation
- Multi color Circuit Diagram is printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Oscilloscope and Digital Meters.
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study operation of Hartley Oscillator Circuit.
- To Determine the Quiescent Operating Point of Transistor.
- To Observe & Note Change in Frequency of Oscillation w.r.t. change in feedback elements.
- Compare the Theoretical & Practical values.
