Product Description

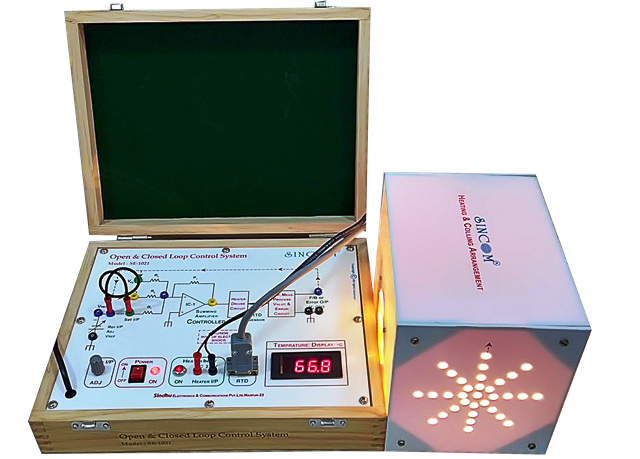

SINCOM SE-1021 Closed Loop Control System is an exceptional, highly adaptable and comprehensive trainer that is specifically designed for studying the impact of an closed loop control system on the temperature of a heater load. This system includes an RTD temperature sensor, OP-AMP based circuitry, a digital temperature indicator, and an electrical heater load. Additionally, it offers the convenience of setting the reference temperature input, multiple feedback elements, allowing for precise control and analysis.
Product Features
- Platinum RTD as a Temperature Sensor
- 31/2 Digit Digital Temperature Indicator
- Closed Loop Temperature control system
- Multiple Feedback elements
- Facility to operate as Open and Closed Loop system
- Reference Input Adjust
- Wide Temperature Range
- External Electrical Heating System
- In-Built Fixed and Variable regulated DC Power Supply
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To study the Closed loop control system.
- To Study the Temperature controller of AC Heater in closed loop mode.
- To Observe and note the ON/OFF of AC Heater at the set value in closed loop.
- To observe and note the change in output w.r.t. change in feedback element.
- To Compare the change in output for the Open and Closed Loop mode.
