Product Description

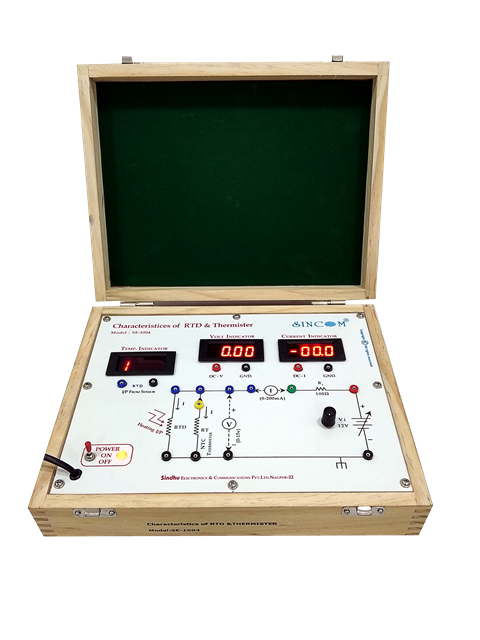

SINCOM SE-1004 Characteristics of RTD and Thermistor is a versatile and all-inclusive trainer designed for studying the characteristics of RTD (Resistance Temperature Detector) and Thermistor. It offers the convenience of adjusting the DC supply voltage and includes on-board digital instruments such as a DC voltmeter, DC ammeter, and temperature indicator. Additionally, it features an electrical heating system for practical experimentation. This comprehensive trainer provides a complete learning experience for understanding the behaviour and properties of RTD and Thermistor.
Product Features
- Platinum RTD and NTC Thermistor
- Wide Temperature Range
- 31/2 Digit LED Digital DC Volt and Current Indicator
- Digital Temperature Indicator
- External Electrical Heating System
- Current controlling resistor in series
- In-Built Fixed and Variable regulated DC Power Supply
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To study construction of RTD and (NTC) Thermistor
- To study the change in Resistance w.r.t. change in Temperature for RTD and Thermistor.
- To Observe and note the change in Voltage (V) and Current (I) w.r.t. change in Temperature.
- To Plot Temperature Vs Resistance characteristics for RTD and Thermistor.
