Product Description

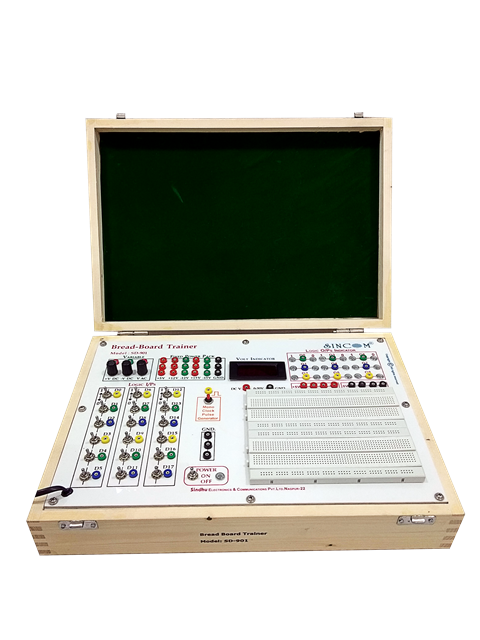

SINCOM SD-901 Bread Board Trainer is a highly extensive trainer for the Bread Board platform, designed for the assembly and testing of DIY electronics circuits. This trainer offers the capability to apply fixed or variable DC/AC voltages, as well as features such as a TTL Logic Inputs generator, TTL Logic Output Indicators, a Mono Pulse generator, and a Digital DC Volt Indicator. This Trainer provides a formal and sophisticated solution for the construction and evaluation of electronic circuits.
Product Features
- Suitable for a wide range of DIY Electronics Circuits
- Two Bread Boards Platform with 1680 tie points
- Incorporates both Fixed and Variable DC and AC Power Pack
- Includes 18 TTL Logic Inputs Generator switches
- Provides 09 Bicolor LEDs for TTL logic Output Indicator
- Mono Pulse Generator
- 31/2 Digit Digital DC Volt Indicator
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Function Generator and Oscilloscope
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To Study the Bread Board Trainer for various inputs and outputs provided on the board.
- To analyze the Power supply section.
- To investigate the Logic Generator, Indicators and Mono clock pulse generator.
- To proficiently construct the desired circuit on the bread board.
- To thoroughly test the assembled circuit.
