Product Description

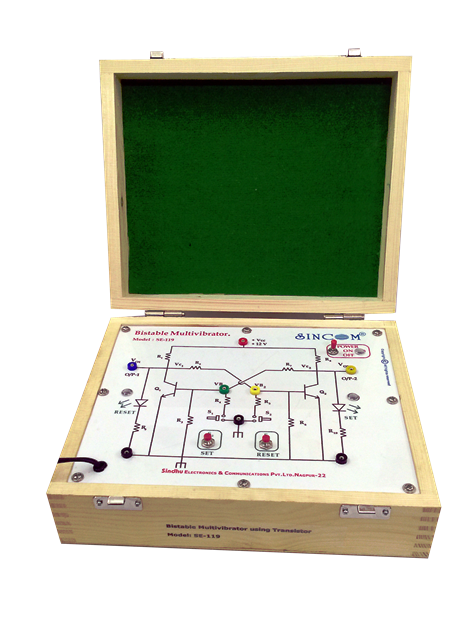

SINCOM SE-119 Bistable Multivibrator using Transistor is a remarkable self contained useful trainer with two CE mode NPN Transistors and resistive positive feedback to provide Bistable Multivibrator Output for the applied two trigger inputs in a simple experimental way.
Product Features
- Silicon NPN BJT of TO-92 package on board
- Two NPN Transistor as CE switching Amplifier with resistive feedback elements.
- Resistive Identical collector load
- Push-To-On SET and RESET Input switches
- Two LED load to indicate Set/Reset output
- In-Built Fixed regulated DC Power Supply
- User friendly Design
- Very Easy for Operation
- Multi color Circuit Diagram is printed on the front panel of the white acrylic board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Trigger Input, Oscilloscope and Digital Meters.
- Interconnections by 2mm high quality banana sockets and pins
- Maximum Test points to explore all the corners of experiment
Learning Scope
- To Study operation of Bistable Multivibrator using transistor.
- To Observe & Note the two outputs w.r.t. applied SET & RESET Trigger Inputs.
- Compare the Theoretical & Practical values.
