Product Description
Product Description

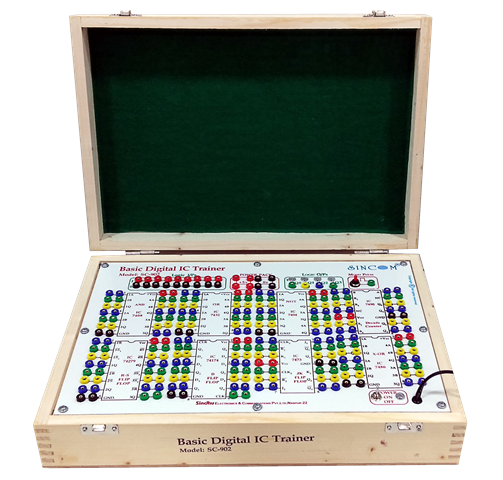

SINCOM SC-902 Basic Digital IC Trainer is a simply designed self contained trainer to understand various experiments using TTL Digital ICs. This trainer offers the capability to verify the operation & truth table of Logic gates, RS Flip-flop, JK F/F, D F/F , Decade Counter ICs and their combinational circuits.
SINCOM SC-902 Basic Digital IC Trainer is a simply designed self contained trainer to understand various experiments using TTL Digital ICs. This trainer offers the capability to verify the operation & truth table of Logic gates, RS Flip-flop, JK F/F, D F/F , Decade Counter ICs and their combinational circuits.
Product Features
- 15 Experiments on a single Trainer15 Experiments on a single Trainer15 Experiments on a single Trainer
- Multiple Digital ICs on board
- Includes 09 TTL Logic Inputs generator
- 04 Bicolor LEDs for TTL logic Output Indicator
- Incorporate DC Power supply
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Interconnections by 2mm high quality banana sockets and pins.
- User friendly Designed
Learning Scope
- To Study the operation of Basic Digital IC trainer for various inputs and outputs.
- To Study Logic Gates AND,OR,NOT,NAND,NOR,XOR,XNOR and verify its truth table.
- To Study and verify the truth table of RS, JK, D,T Flip-flops.
- To study and verify the truth table of Decade Counter.
- To study various circuits based on logic gates and Flip-flops.
