Product Description

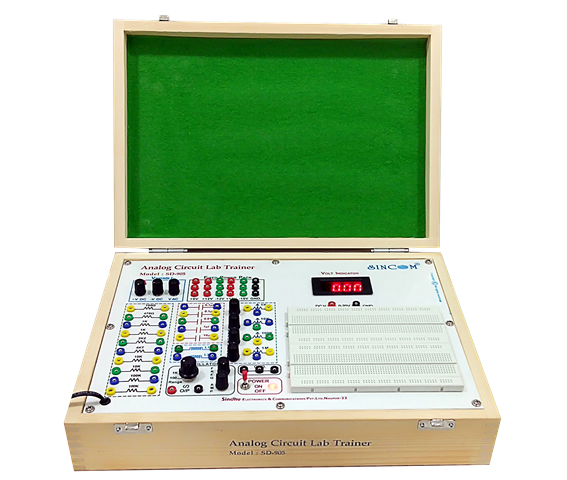

SINCOM SD-905 Analog Circuit Lab Trainer is an exceptional and all-encompassing trainer that is well-suited for the assembly and testing of Analog Electronics circuits on a Bread Board platform. This trainer offers the capability to apply fixed or variable DC/AC voltages, generate Sine wave test signals, electronics components bank, and a Digital DC Volt Indicator. This Trainer provides a formal and sophisticated solution for the construction and evaluation of a wide range of Analog Electronics circuits.
Product Features
- Suitable for a various array of Analog Electronics Circuits.
- Two Bread Boards Platform with 1680 tie points
- Incorporates both Fixed and Variable DC and AC Power Pack
- Includes Basic Electronics component bank
- 31/2 Digit Digital DC Volt Indicator
- Sine wave Test Signal generator with variable Frequency and amplitude.
- Presents a multi-color Circuit Diagram printed on the front panel of the white board
- Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
- Facility to connect external Function Generator and Oscilloscope
- Interconnections by 2mm high quality banana sockets and pins.
Learning Scope
- To Study the Analog Circuit Lab Trainer for various inputs and outputs provided on the board.
- To analyze the Power supply section.
- To Study the Test signal generator section.
- To investigate the various components provided on the Board.
- To proficiently construct the desired Analog circuit on the bread board.
- To thoroughly test the assembled circuit.
