Product Description

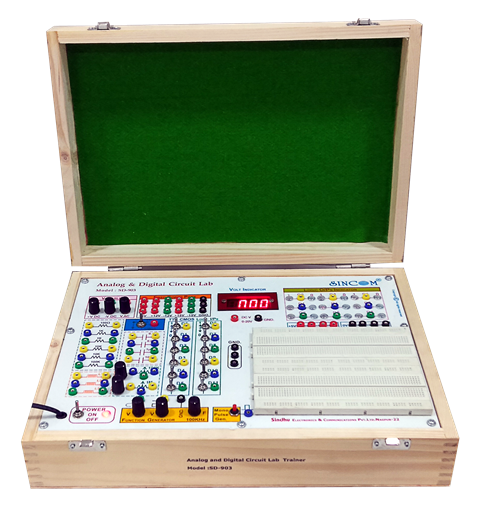

SINCOM SD-903 Analog and Digital Circuit Lab Trainer is an exceptional and all-encompassing trainer that is well-suited for the assembly and testing of Analog and Digital Electronics circuits on a Bread Board platform. This trainer offers the capability to apply fixed or variable DC/AC voltages, generate Sine and Square wave test signals, as well as includes features such as a TTL/CMOS Logic Inputs generator, TTL/CMOS Logic Output Indicators, a Mono clock Pulse generator, an electronics components bank, and a Digital DC Volt Indicator. This Trainer provides a formal and sophisticated solution for the construction and evaluation of a wide range of Analog and Digital Electronics circuits.

Product Features

Appropriate for a diverse array of Analog and Digital Electronics Circuits.
Two Bread Boards Platform with 1680 tie points
Incorporates both Fixed and Variable DC and AC Power Pack
Includes 12 TTL/CMOS Logic Inputs Generator switches
Facility to select the TTL/CMOS Digital circuits
Provides 09 Bicolor LEDs for TTL/CMOS logic Output Indicator
Mono Clock Pulse Generator
31/2 Digit Digital DC Volt Indicator
Sine and Square wave Test Signal generator with variable Frequency and amplitude.
Includes Basic Electronics component bank
Presents a multi-color Circuit Diagram printed on the front panel of the white board
Enclosed in an attractive, light weight, High Quality, Poly Coated Imported Pine Wooden cabinet
Facility to connect external Function Generator and Oscilloscope
Interconnections by 2mm high quality banana sockets and pins.

Learning Scope

To Study the Trainer for various inputs and outputs provided on the board.
To analyze the Power supply section.
To Study the Test signal generator section.
To investigate the Logic Generator, Indicators and Mono clock pulse generator.
To investigate the various components provided on the Board.
To proficiently construct the desired Analog and Digital circuit on the bread board.
To thoroughly test the assembled circuit.
